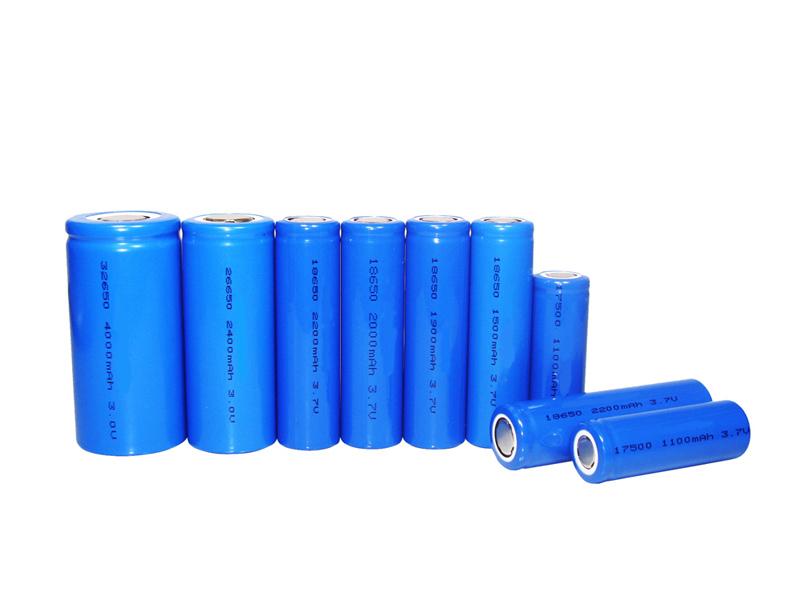

Lithium ion (Li-ion) Cylindrical Batteries

Model

Inner Impedance

Max. Dimensions

Nominal Voltage

Nominal Capacity

Weight

Temperature (℃)

(mΩ)

(mm)

(V)

(mAh)

(g)

Charge

Discharge

Storage

CR18500	≤80	Φ18.0x50.0	3.7±0.02	1620	35.0	0~45	-20~60	-20~45
CR18650	≤70	Φ18.0X65.0	3.7±0.02	2600	46.0	0~45	-20~60	-20~45
CR18650	≤70	Φ18.0X65.0	3.7±0.02	2200	45.0	0~45	-20~60	-20~45
CR18650	≤70	Φ18.0X65.0	3.7±0.02	2000	43.0	0~45	-20~60	-20~45
CR18650	≤70	Φ18.0X65.0	3.7±0.02	1800	43.0	0~45	-20~60	-20~45
CR18630	≤70	Φ18.0X63.0	3.7±0.02	1900	33.0	0~45	-20~60	-20~45
CR18500	≤80	Φ17.95X50.0	3.7±0.02	1400	33.0	0~45	-20~60	-20~45
CR17670	≤80	Φ16.8X65.3	3.7±0.02	1400	36.0	0~45	-20~60	-20~45
CR17500	≤80	Φ17.95X50.0	3.7±0.02	1100	27.0	0~45	-20~60	-20~45
CR17360	≤90	Φ17.0X36.0	3.7±0.02	750	19.0	0~45	-20~60	-20~45
CR17360	≤100	Φ17.0X36.0	3.7±0.02	700	19.0	0~45	-20~60	-20~45
CR16340	≤90	Φ16.5X33.5	3.7±0.02	600	17.0	0~45	-20~60	-20~45
CR16340	≤90	Φ16.5X34.0	3.7±0.02	600	17.0	0~45	-20~60	-20~45
CR14650	≤90	Φ14.1X65.0	3.7±0.02	950	22.0	0~45	-20~60	-20~45
CR14500	≤80	Φ14.0X50.0	3.7±0.02	760	20.0	0~45	-20~60	-20~45
CR14500	≤80	Φ14.0x50.0	3.7±0.02	700	19.0	0~45	-20~60	-20~45
CR14430	≤80	Φ14.0X43.0	3.7±0.02	700	18.0	0~45	-20~60	-20~45
CR14430	≤80	Φ14.0X43.0	3.7±0.02	650	17.0	0~45	-20~60	-20~45
CR14250	≤110	Φ14.0X25.0	3.7±0.02	280	10.0	0~45	-20~60	-20~45
CR13490	≤80	Φ13.0X49.0	3.7±0.02	600	16.0	0~45	-20~60	-20~45
CR12300	≤120	Φ12.0X30.0	3.7±0.02	280	8.50	0~45	-20~60	-20~45
CR10440	≤110	Φ10.0X44.0	3.7±0.02	360	9.50	0~45	-20~60	-20~45
CR10430	≤120	Φ10.0x43.0	3.7±0.02	320	9.20	0~45	-20~60	-20~45
CR10250	≤180	Φ10.0X25.0	3.7±0.02	150	5.00	0~45	-20~60	-20~45
CR10220	≤180	Φ10.0X22.0	3.7±0.02	130	4.50	0~45	-20~60	-20~45
CR10180	≤180	Φ10.0X18.0	3.7±0.02	110	3.50	0~45	-20~60	-20~45
