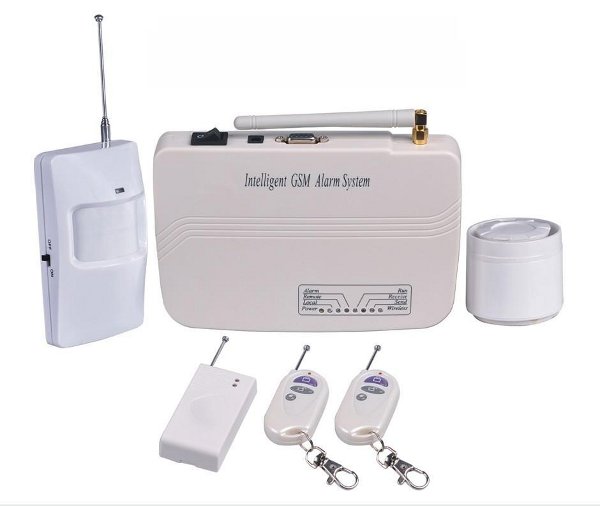

GSM ALARM SYSTEM Model: ESG-M1

Description and Main functions
1. Sierra (Wavecom) GSM module.
2. 6 wireless zones ( 1 wireless SOS zone, 1 wireless fire alarm zone, and the other 4 wireless zones can be definded by user).
3.You can connect wireless emergency button, wireless PIR sensor, wireless door/window contact, wireless smoke detector, wireless gas leakage detector, wireless glass break sensor etc. Each wireless zone can match numberless wireless sensors.
4. Can Auto-dial 6 phone No. while alarming.
5. You can call the main unit at any time and listen what happened in the alarm area.
6. Arm/disarm by wireless keyboard or phone and can be set by keyboard or phone.
7. With Human voice guide and easy to operate.
8. With voice reminder & password protection while the system is working.
9.Can report alarm zone by voice
10. Can connect with intercom. You can talk to the mainframe with intercom.
11. Switch to Backup rechargeable battery when power is failure or cut by intruder.
12. Wireless signal transmission, and don't fear for cutting line by the intruders.
13. Wireless Emergency function: you can press the button to alarm immediately in order to get help if in emergencies.
14. Can send alarm signals to monitoring center through GSM network, such as the police station.
15. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ
16. ESG-M1 set includes:
One alarm host (main unit)
One Wireless door/window magnetic contact
One PIR sensor
Two remote controllers
One siren(More than 110DB)
One AC adapter
One English user manual
17.Specification of main unit:
Output power: DC12V
Input power: AC110V to 220V,50Hz or 60 Hz
Working hours of standby Battery (DC8.4V): More than 15 hours
Wireless frequency for above accessories:315MHZ/433MHZ
18. OEM

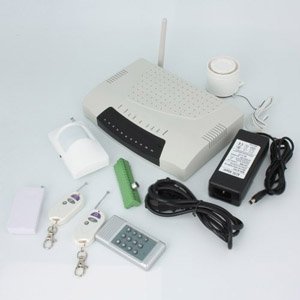

GSM ALARM SYSTEM Model: ESG-M2

Description and Main functions

1. SIMCOM Quadband GSM module.
2. 8 Wireless zones (1 wireless SOS zone, 1 wireless fire alarm zone, the other 6 wireless zones can be defined by user), 1 external power failure alarm zone and 2 wired zones.
3.You can connect wired & wireless PIR sensor, door/window contact, smoke detector, gas leakage detector, glass break sensor etc. Each wireless zone can match numberless wireless sensors.
4.You can record your voice in the mainframe in advance and will call you or the police and play the voice while alarming.
5.Can send SMS to 3 mobile phone No. and Auto-dial 3 phone No. while alarming.
6.You can call the mainframe any time and listen what happened in the alarm area.
7.You can arm/disarm and program the system by wireless keyboard, SMS or phone
8. Report the alarm zone & type by SMS or voice and can be remote controlled by SMS and telephone.
9. Modify name of wireless zones and check the status of alarm mainframe by SMS.
10.With voice reminder & password protection while the system is working.
11. Can connect with intercom. You can talk to the mainframe with intercom.
12. Switch to Backup rechargeable battery when the power is failure or cut by intruder and will send SMS and call you. If the power is recoverd, it will also send SMS to you.
13.Wireless signal transmission, with Human voice guide and easy to use, and don't fear for cutting wire by the intruders.
14. Wireless Emergency function (24 hours zone):you can press the button to alarm immediately in order to get help if in emergencies.
15.Can send alarm signals to monitoring center through GSM network, such as the police station
16. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ
17. ESG-M2 set includes:
One alarm host (main unit)
One Wireless door/window magnetic contact
One PIR sensor
Two remote controllers
One siren(More than 110DB)
One wireless keyboard
One AC adapter
One English user manual
18. Specification of main unit:
Output power: DC12V
Input power: AC110V to 220V,50HZ or 60 HZ
Working hours of standby Battery (DC8.4V):
More than 10 hours
Wireless frequency for above accessories:
315MHZ/433 MHZ
19. May add the following two function:
With one relay out-put to control your home appliance, such as the light.
work with the CCTV cameras and DVR, once triggered, it will start the camera & DVR.
20. OEM

GSM ALARM SYSTEM
Model: ESG-M2E

Features:
Through GSM net auto-dial to alert.
Auto-dial five groups telephone No. and send the SMS in English.
Can edit the alert message
Intelligent recognize the owner whether received the alert, and won't telephone the owner after receiving.
Arm, disarm, listen in and communicate in two way with the spot through the telephone.
Coding, can be flexible to encode the detectors.
Can be encode 3wired zones, and wireless detectors.
1 relay out line, can open the video and lights when alarm occurs.
Can connect 3 house appliance, and control the house appliance through the telephone .

Technical parameters:
Operating Voltage: DC 12V
Static Current: ≤20Ma
Alarm Current: ≤400mA
Wireless Receiving Frequency: 315MHz±0.5MHz
Wireless Receiving Sensitivity: 315MHz±0.5MHz
Anti-interference: 1V/m(frequency:20-1000 MHz)
GSM frequency: 900/1800MHZ
Outer Alarm siren volume: 110dB
Working condition: Temperature: -10C~40C
Humidity: ≤90%
Capacity for wireless device: 10pcs
Size : 140*130*35 mm
OEM

GSM ALARM SYSTEM
MODEL: ESG-M3

Description and Main functions

1. English language SMS and voice reminder, Spanish/Chinese/Russian for optional
2. With Partial arm function
3. With 2 wired zones, 12 wireless zones
4. With 3 Relay output to control your home appliances
5. With voice reminder when users operate the system
6. Work with external Microphone
7. Work with external speaker
8. Auto send SMS to remind users when GSM signal becomes weak
9. Work with wired & wireless PIR, door/window sensor, smoke/gas detector, glass break sensor etc.
10. Each wireless zone can match countless wireless sensors.
11. Users pre-record voice in the system and play the voice when system gives alarm
12. Send SMS to 3 mobile phones and auto-dial 3 phones to inform the users
13. Users use any phone to listen what is happening inside the house whenever & wherever.
14. Program and control the system by keyboard, remotes, SMS or phone remotely.
15. Send SMS to inform users which zone is alarming and will call users or the police after system is triggered.
16. Use SMS to change the zone name & content.
17. Use SMS to inquiry the system status wherever.
18. With password protection, System will inform users when input wrong password for 3 times
19. Use any phone to call the system and anyone inside the house -can talk to you through a speaker.
20. Wireless Emergency function (24 hours zone)
21. With Backup rechargeable battery, system can work even when the power is failure or cut by intruder.
22. Send SMS to inform you when the power is failure or returns to normal.
23. Support monitoring center through GSM network to the police station or management centre
24. GSM frequency: 900/1800MHz, 850/1900MHz.
25. ESG-M3 set includes:
One Main unit
One Wireless Magnetic Door Sensor
Two Wireless Remote Controls
One Wireless Programming Keypad
One Wireless PIR Motion Sensor
One Hardwire Mini Siren
One 12V AC/DC Adapter
26. Specification:
Start-time: less than 1s
Alarm response time: less than 10s (GSM in normality)
Power requirements: AC 220V 50Hz
Standby lithium battery: DC8.4V, 700/800mA, 4000mA optional
Standby battery working hours: more than 10 hours, 4000mA for over 3 days
Working conditions: operating temperature: -20 to 60° C,humidity: 20% to 95%, wireless frequency 315/433MHZ
27. OEM

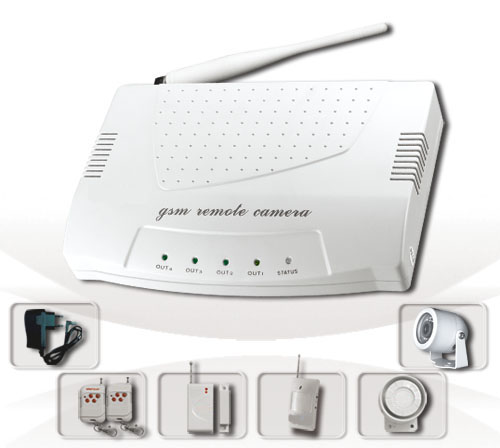

GSM ALARM SYSTEM MODEL: ESG-M3E

products introduction :
Support GSM/CDMA,adopt Tri- bands, 900/1800/1900MHZ .
Can pre-set 5 groups of alarm phone numbers with room number, which belong to the owner, police station and monitoring center.
Auto-dial and send SMS & MMS to the 5 phone numbers through GSM network.
The camera can detect the moving objects , can capture illegal intruder photo and send to owner's cell phone or email box, which provides evidence for case.
Can remotely control 3 home appliance with the three output ports by phone .
Listen-in function: Can clearly hear the voice on the spot, such as footstep.
There is a siren port for shift between silence and siren.
Make sure the safety of the sytem with password operation .
Can control the alarm system by remote controllers or SMS commands, e.g: arm ,disarm, monitor,listen-in.
Has 3 input ports, which can be connected with 3 wired detectors.
Has 1 output port,which can link the video,lights and other device when alarming.
Intelligent recognize if the ower receive the alarm call.
The picture to be transmitted can be adjusted to QCIF (160x128), CIF (320x240), VGA (640x480).

Technical Parameters
Operating Voltage: DC 12V
Static Current: ≤150Ma
Alarm Current: ≤600mA
Wireless Receiving Frequency: 315MHz±0.5MHz
Wireless Receiving Sensitivity: 315MHz±0.5MHz
Anti-interference: 1V/m(frequency:20-1000 MHz
GSM frequency: 900/1800/1900MHZ
Outer Alarm siren volume: 110dB
Working condition: Temperature: -10C-40C
Humidity: ≤90%
Capacity for wireless device: 16pcs
wired device: 3pcs

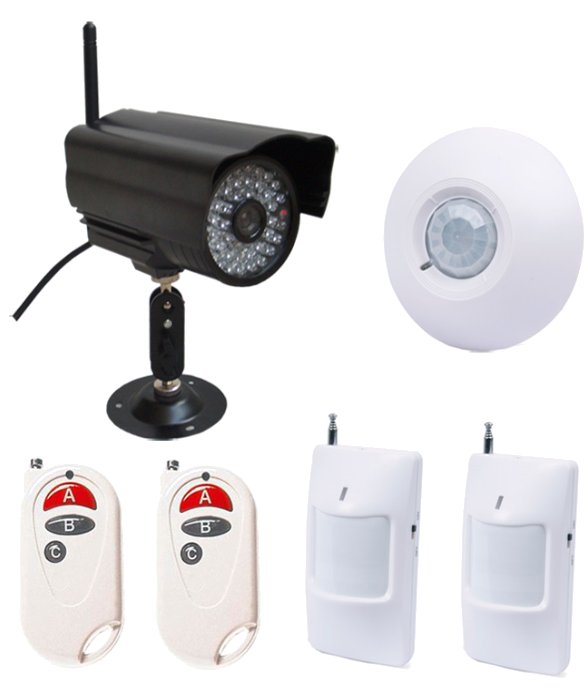

Standard pack components
1 host, 1 camera,1 wireless PIR sensor, 1 wireless door sensor, 1 siren, 2 remote controllers, 1 power adapter, 1 user manual
Weight : 1.5Kg/set
Size : 220*160*38
Certificates: CE, FCC, RoHS and ISO9001:2000
OEM

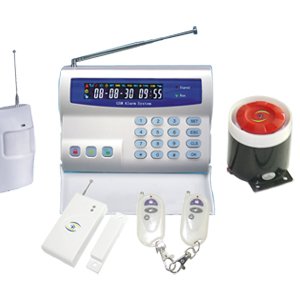

GSM ALARM SYSTEM MODEL: ESG-M4

Description and Main functions

1. Sierra (Wavecom) GSM module.
2. 10 wireless zones(1 wireless SOS zone, 1 wireless fire alarm zone, the other 6 wireless zones can be defined by user) and 1 external power failure alarm zone.
3.You can connect wireless emergency button, wireless PIR sensor, wireless door/window contact, wireless smoke detector, wireless gas leakage detector, wireless glass break sensor etc. Each wireless zone can match numberless wireless sensors.
4. With LCD display and Control keyboard on the mainframe.
5. Send SMS to 3 preset mobile phone numbers and Auto-dial 3 preset phone numbers while alarming.
6. You can call the mainframe any time and listen what happened in the alarm area.
7. With AC power status monitor function and password protection function
8. With fixed time arming/partial arming/disarming function
9. Control the alarm system by Control keyboard, remote control or SMS.
10. Modify 8 wireless zones' name and check the system status by SMS.
11. Define the 8 wireless zones as arm/partial arm by control keyboard on the mainframe.
12. Switch to Backup rechargeable battery when the power is failure or cut by intruder.
13. Wireless Emergency function (24 hours zone):you can press the button to alarm immediately in order to get help if in emergencies.
14. Wireless signal transmission, and don't fear for cutting wire by the intruders.
15.Can send alarm signals to monitoring center through GSM network, such as the police station
15. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ
16. ESG-M4 set includes:
One alarm host (main unit)
One wireless door/window magnetic contact
One wireless PIR sensor
Two remote controllers
One siren
One AC adapter
One English user manual
17. Specification of main unit:
Output power: DC12V
Input power: AC110V to 220V,50Hz or 60 Hz
Working hours of standby Battery(DC8.4V): More than 15 hours
Wireless frequency for above accessories: 315MHZ/433MHZ
18. OEM

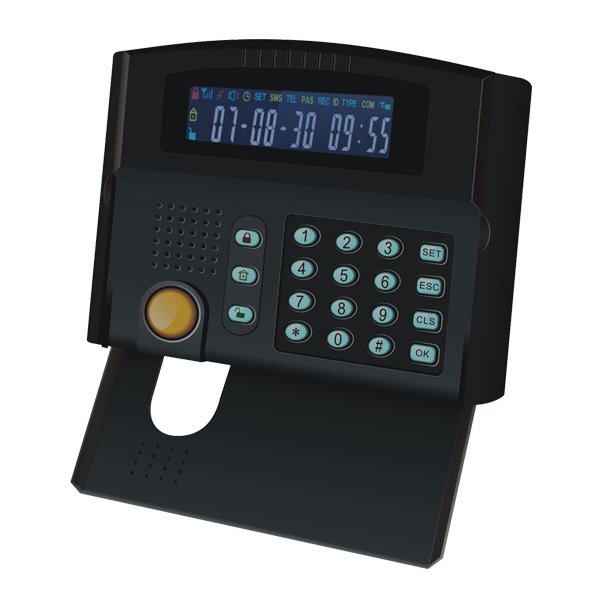

GSM ALARM SYSTEM MODEL: ESG-M5

Description and Main functions

1. Color LCD screen, keypad with blue light
2 .Maximum 4 wireless panic buttons, 4 wireless fire detectors, 16 remote controllers, 32 wireless intruder detectors.
3. Maximum 8 wired zones:only zone 1 and zone 2 for wired door/window magnetic contact that can show the door/window open with LCD and SMS.
4. Sensors low voltage reminder.
5. 6 mobile phone numbers for SMS alarm.
6. 5 phone numbers for alarm call.
7. Forward mobile company SMS to user automatically.
8. Voice guide and three level password management.
9. One relay output control DVR/Home appliance remotely.
10. Recording voice
11. Two auto-arm time, two auto-disarm time and one auto-partial arm time available for programmed.
12. 220 wireless address encode reduce the rate of same code greatly.
13. Learning code wireless accessories.
14. SMS control & program
15. SMS modifies wireless zones name.
16. Two-way communication available.
17. Handfree mobile phone
18. Arm/disarm by keypad, remote controller, phone or SMS
19. Call the main unit to listen in status whenever.
20. Entry delay alarm.
21. Main unit with tamper switch.
22. Internal MIC or external high sensitivity MIC (optional)
23. Internal GSM antenna or external antenna(optional)
24. External power failure alarm.
25. Working with monitoring center, such as police station
26. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ
27. Standard packing list:
One main unit
One wireless door/window magnetic contact
One wireless PIR sensor
Two remote controllers
One black siren
One AC adapter
One English user manual

28. Specification:
GSM frequency: 900/1800MHz (standard), 850/1900MHz (optional)
Working frequency of detectors:315M & 433M (optional)
Alarm response time: less than 8s (GSM in normality)
The volume of siren: More than 110db
Power requirements: AC 110-220V 50Hz or 60Hz
Working power consumption:less than 3W
Standby battery:DC 3.7V, 2000MAH
Operating temperature: -20° ~ 60°
Humidity: 20% to 95%
29. OEM

GSM ALARM SYSTEM MODEL: ESG-M7

Description & main functions: 1. 2 wired zone, 24 wireless guarding zones, 1 relay out.
2. Send SMS to 3 preset mobile numbers and call to 3 preset telephone numbers by turns while alarming, after 10 seconds alarm voice message ,you can listen what happen in your house and achieve two-way communication function.
3. Support timing arm/disarm and partial arm/disarm.
4. You can arm/disarm the host by keypad, SMS and remote controllers.
5. With color LCD screen, touch button with blue backlight on the host, easy to program.
6. Modify the zone name and remote control the host by SMS command
7. Support wireless door bell function.
8. Auto-detect doors/windows are closed properly before arming.
9. Support landline dialing and answering function.
10. ESG-M7 set includes:
One alarm host (main panel)
One wireless door/window magnetic contact
One wireless PIR sensor
Two remote controllers
One siren
One AC adapter
One English user manual
One doorbell button
11. Specification of main unit:
Output power: DC12V
Input power: AC110V to 220V,50Hz or 60 Hz
Working hours of standby Battery (DC8.4V): More than 15 hours
Wireless frequency for above accessories: 315MHZ/433MHZ

12 OEM

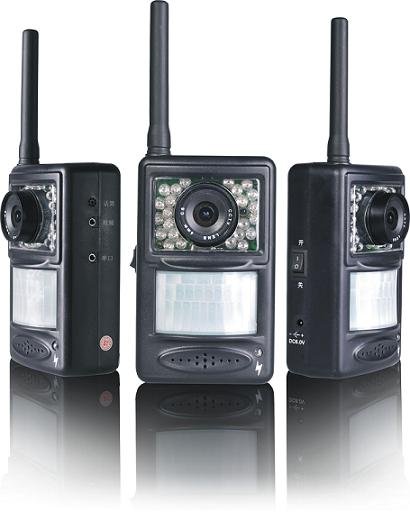

GSM ALARM SYSTEM MODEL: ESG-M8

Description and Main functions
*With camera & PIR itself
*Can send MMS to your mobile phone.
*Can Send picture to your E-mail.
*Can match detectors/sensors with mainframe by learning code.
1. IR thermo image monitoring and detection for moving objects, the double detection technology can eliminate the false alarm caused by environmental reasons.
2. It has real-time mobile AV alarm and e-mail video image back-up receiving model.
3. You can monitor the site by mobile phone at any time.
4. You can use mobile to listen the voice at the remote site.
5. Alarms will activate the pre-recorded voice messages and inform the users immediately.
6. Easy operate with a wireless remote control device by simple mobile instructions.
7. You can set if the siren and beacon device to be activated when alarm happen.
8. Under emergency situation EMSD key can silently inform any designated users.
9. With build-in back up battery, device can be still operating during power failure.
10. With IR night vision camera, it provides full time 24 hours day and night monitoring function.
11. OEM
Main specification
PIC Format: JPEG
Resolution: 320X240 /480 X320 pixels
Effective Range: < 20 meters
Remote Control Distance: < 30 meters
Plug in power: DC6V
Input: AC110V ~ 220V, 50hz or 60hz
Backup Battery: < 72 hrs (depends on battery capacity)
Working Temperature: 0-50° C (32-122°F)
Relative Humidity: 10-90%, non-condense
Camera View Angle: Horizontal 60° / Vertical 60°

GSM ALARM SYSTEM MODEL: ESG-M9

This is a new product with 3G video function. It supports video/MMS/SMS/voice call/video phone/e-mail/IP network to alarm. It's widely used for villas,houses,shops, small and medium stores,cars,hospitals,schools,libraries,banks,financial offices,lets,communities and other important places .
Products Introduction
1. Support WCDMA/HSDPA/GSM/GPRS/EDGE working model.
2. Built-in 2,000,000 pixels night vision camera,suitable for night use.
3.Support PIR motion detecting,can take photos once trigged alarm.
4.Send scene photos(MMS) to user phone/ e-mai address/IP address.
5.Support video/MMS/SMS/voice call/video phone/e-mai/IP network to alarm.
6.SMS content of each zone can be edited.
7.Support 2GB SD Card to storage image and video.
8.Image size:UXGA(1600?1200),video size: QVGA(320x240).
9.16 wireless zones,each can be programmed independently,eg:arm,disarm and 24-hour arm.
10.Can dail to 5 user phones and 1 monitor center and 1 SMS center when alarming.
11.Set the time of reporting,timing report to monitor center.
12. Supports GPS positioning,applied to automotive systems.(optional)
13. OEM

Technical specifications:
Power adapter: Input 100V~240V/50Hz Output DC 5..0V/2A
Receive coding: ASKReceive frequency: 315/433 MHz
Wireless detectors: 16 pcs
Wireless remote distance: 80m
Camera pixel: 2,000,000 pixels
Video format: QVGA(320x240)
Image format: UXGA(1600 1200)
View angle: 100° Horizontal,60° vertical
Camera distance: 8-10 m
Battery life (standby): 24 hours
Working temperature: 10-45C
Humidity: 10-90%
Frequency : WCDMA/HSDPA 850/1900/2100 MHz
EDGE/GPRS/GSM 850/900/1800/1900 MHz
Camera Dimension: 130-90-40mm (LxWxH)

Standard pack components
1 main panel, 1 power supply, 1 manual

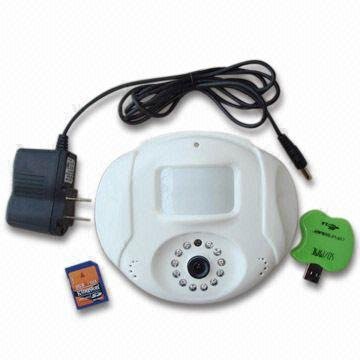

GSM ALARM SYSTEM MODEL: ESG-M10

products introduction 1. Built-in 300,000 pixels night vision digital camera,suitable fo night use.
2. Support 2G SD card , convenient for long-term storage of image evidence.
3. Support PIR motion detecting with photo-taking.
4. Support SMS, MMS,phone,E-mail to alarm.
5. Image size is adjustable: QCIF(160?128)?CIF(320?240)?VGA(640?480)
6. Can pre-set arm / disarm time,convenient for user or alarm center to control.
7. The time of reporting can be set regularly .
8. 16 wireless zones,each can be prgrammed independently,eg : arm,disarm and 24-hour arm.
9. Can set 5 user phone numbers, can listen-in when alarming.
10.Can set 2 mial address: send scene image alarm infor to E-mial.
11.Support GSM / CDMA mobile phone to receive SMS alarm and send SMS commands to control the system.
12.Wireless remote controller,convenient for user to arm,disarm,panic alarm and take photo.
13.Can send scene color images to mibile phone immediately after alarming .
14.User can remotely listen-in by calling the host.Can hear the voice at the scene .
15.Can capture scene color photos and send to user by sending SMS command.
16.Adopt tri-band GSM 900/1800/1900 MHz wireless network, no distance limit to alarm.
17.Built-in Li battery, AC-DC shift, automatically recharge .
18.Password operation ensure the security of system.
19.Support Real-Time Clock adjustment, SD card image stored with time, convenient for inquire.
20.Wireless system, no need to set wire and easy to install. Special suitable for garage, storeroom, and other places where there is no wired network.
21. OEM

Technical parameter
Static Current: 40 mA
Power Supply: 9-12 V
Working Temperature: -40C ~ +85C
Support GSM 900/1800/1900 MHz tri-band mode
Support PHASE2/2 & protocol (Including data services)
Transmission Power: (2W)/ GSM900, (1W)/GSM1800 /GSM1900
Receive Coding :ASK
Receive Frequency: 315/433 MHz
Remote Control Distance: No obstacle 10m
Detectors:16

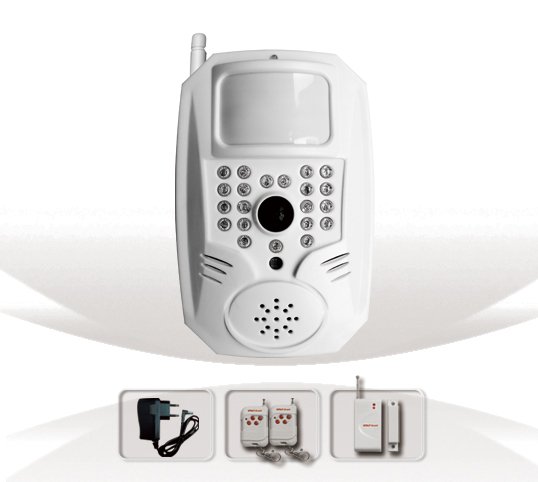

GSM ALARM SYSTEM MODEL: ESG-M11 GSM MMS GPRS Alarm Camera

Waterproof Case can be used outdoor;
Camera + GSM Module in one unit.


Standard set of the GSM MMS GPRS Alarm Camera:
Camera X1
Remote control X2
Wireless Door magnetic Sensor X1
GSM Antenna X1
AC/DC AdaptorX1
User Manual X1
Optional Accessories( Wireless sensors):
Combined Light and Siren PIR Motion Sensor Glass Break Sensor
Magnetic Window Sensor Magnetic Steel Scrolling Door Sensor
Infrared Photoelectric Beam Fence
Our Other Wireless Sensors
Specifications of the GSM MMS GPRS Alarm Camera:
Rated Voltage: 12VDC
Status Current: less than 50mA, working Current: less than 2500mA;
Work temperature: -30°~+50°
Storage temperature: -30°~+60°
Relative humidity: 10-90%, No condensation
Work frequency: GSM900,1800,1900Mhz
Communication protocol: GSM PHASE 2/2+ (include data service)
Wireless sensor receiving frequency: 433 MHz
Wireless sensor permission quantity: 16Pcs
Effective distance wireless of remote control: 100 m
Image resolution: 640?480;
Camera type: IR CCD Camera, 3000000 Pixel
Camera shooting angle: 60°(horizontal), 60°(vertical)
Best shooting distance at night: ≤15 m
Battery: Built-in lithium-ion battery 1000mAh
Standby time Approx.12hours (depending on the network condition)
