Industrial Gsm Alarm Systems

Industrial GSM alarm systems can be used in communications base stations, industrial control house? and other important facilities.

GSM ALARM SYSTEM MODEL: ESG-i10

Description and Main functions
1. With Sierra (WAVECOM) GSM module.
2. 8 digital inputs, 2 wireless zones and 1 external power failure alarm zone.
3. Can program open/closed alarm of digital inputs.
4. Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal components.
5. Send SMS automatically to report the state of digital input when it returns normal status.
6. Send SMS to 3 preset mobile phone numbers while alarming.
7. Auto-dial 3 preset phone numbers while alarming and monitor the sound at site.
8. You can arm/disarm and program the system by wireless keyboard, SMS or phone
9. You can call the mainframe at any time and listen what happened in the alarm area.
10. Modify zone name and check status of alarm mainframe by SMS.
11. Switch to Backup rechargeable battery when power is failure or cut by intruder.
12. External power failure alarm: when the system checks out that there is something wrong with the external power or the external power is off for more than 2 seconds, it will alarm immediately
13. With password protection function
14. Aluminum alloy casing.
15. Can send alarm signals to monitoring center through GSM network, such as the police station.
16. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ.
17. ESG-i10 set includes:
One alarm host (main unit)
One wireless keyboard
One remote controllers
One siren
One AC adapter
One English user manual
18. Specification of main unit:
Output power: DC12V
Input power: AC110V to 220V,50Hz or 60 Hz
Working hours of standby Battery (DC8.4V): More than 15 hours
Wireless frequency for above accessories:315MHZ/433MHZ
19. OEM

GSM ALARM SYSTEM MODEL: ESG-i20

Brief Introduction:
Adopt three bands, GSM 900Mhz, 1800Mhz and 1900Mhz, can alarm remotely without the limit of distance.
Support GSM/CDMA, and English and Chinese SMS to control system and motion detecting and arm/ disarm.
Support the SD card to store pictures, and have the function of the detecting the moving objects pictures.
Support all kinds of wireless detectors and connect the wire alarming equipment.
Can store up to SD Card of 2G, which about 28,800 photos.
Can arm, disarm, monitoring and take photos through remotely
Can capture thief 's photo and send to owner's cell phone or email box, which provides evidence for case.
Can support the function of motion detecting with alarm.
The picture to be transmitted can be adjusted to QCIF (160x128), CIF (320x240), VGA (640x480).
Can pre-set 5 groups of alarm Phone Numbers with room No., can call the owner, town police and monitoring center.
Listen-in function: Can clearly hear the voice, the sound of footstep, dug and safebreaker.
Can make sure the safety of your home with password operation and control the alarm system by remote controllers and SMS to make it arm, disarm, listen-in and photo-taking.
Can control the switch of light, air-condition and heater or cooker with the three Output ports by mobile phone or telephone.
Control panel has three input ports, which can be connected with three wired detectors.
There is a siren port for shift between silence and siren.
Can work with all kinds of wireless detectors or sensors, such as wireless PIR Sensors, beams, gas/smoke detectors, wireless panic buttons

Technical Parameters
Operating Voltage: DC 12V
Static Current: ≤150Ma
Alarm Current: ≤600mA
Support GSM900/1800/1900 MHz, three working modes switched automatically
Support PHASE 2/2+ agreement (including data business)
Sending power: (2W)GSM900/(1W)GSM1800
Wireless Receiving Frequency: 315MHz±0.5MHz
Wireless Receiving Sensitivity: 315MHz±0.5MHz
Anti-interference: 1V/m
Frequency:20-1000 MHz
Outer Alarm siren volume: 110dB
Working condition: Temperature: -10C-40C
Humidity: ≤90%
Capacity for wireless device: 16pcs
wire device: 3pcs

Standard pack components
1 hostl, 1 wireless PIR sensor, 1 wireless door sensor, 1 siren, 2 remote controllers, 1 camera, 1 power supply , 1 user manual
Weight : 1.5Kg/set
Size : 153*133*26 mm

GSM ALARM SYSTEM MODEL: ESG-i2000

Description and Main functions:
1. With SIMCOM GSM module.
2.1AC voltage input:AC0 - 300V(50HZ or 60HZ)
3.1DC voltage input:DC0 - 60V
4.1DC current input:DC 4-20 mA
5.1temperature input:-30 - +70C
6. With 2 hardwire zones, can connect to anti-burglary, fire sensors.
7. With 8 Wireless zones, can connect to anti-burglary, fire sensors.
8. Can program 4 SMS receiver number, 2 auto-dial phone number.
9. User can receive the (voltage & current, Temperature) via SMS remotely.
10. Modify zone name and check status of alarm mainframe by SMS.
11. Switch to Backup rechargeable battery when power is failure or cut by intruder.
12. External power failure alarm: when the system checks out that there is something wrong with the external power or the external power is off for more than 2 seconds, it will alarm immediately
13.With password protection function
14. Metal casing.
15. Can send alarm signals to monitoring center through GSM network, such as the police station.
16. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ.
17. ESG-i2000 set includes:
One alarm host (main unit)
Specification of main unit:
Input power: AC110V to 240V,50Hz or 60 Hz
Output power: DC12V
Working hours of standby Battery(DC8.4V): More than 15 hours
Wireless frequency for above accessories:315MHZ/433MHZ

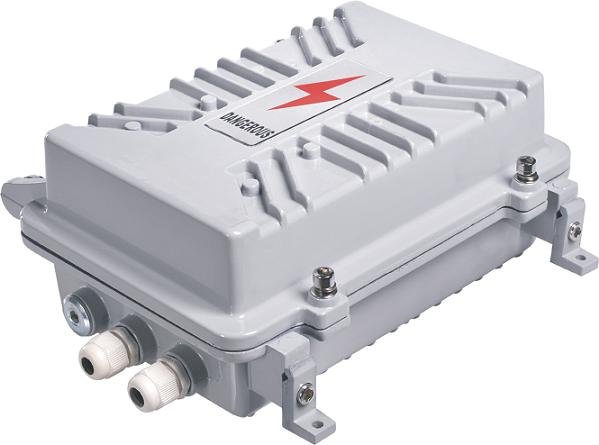

GSM ALARM SYSTEM MODEL: ESG-i30

Description and Main functions
1. With 8 routes of wired input alarm.
2. Monitor 3 phase loss voltage and single phase failure of the electric distribution network.
3. Can connect line-cut/movement/vibration sensors etc. It will alarm when power transformer is damaged or moved.
4. Send SMS to 6 preset mobile phone numbers and dial 2 phone No. automatically while alarming.
5. Support settings through wireless keyboard or remotely by telephone or SMS.
6. Can program the alarm mainframe and check its status by SMS demand.
7. Can define the installation location by SMS demand.
8. Can report the communication status of alarm mainframe in fixed time everyday.
9. with fixed-time arming/disarming function.
10. Completely sealed aluminum outer shell: waterproof, Antiseptic, fireproof,suitable for outdoor use.
11. Resist electromagnetic interference, lighting and thunder
12. The system has power-off protection function. When the external power supply is damaged or the power is off, the system can continue to work with a backup battery.
13. Can install the solar battery that can supply the power for alarm mainframe and charge the backup battery.
14. External power failure alarm: when the system checks out that there is something wrong with the external power or the external power is off for more than 2 seconds, it will alarm immediately
15. Anti-dismantle function,It will alarm immediately if the cover openned by someone.
16. Can send alarm signals to monitoring center(such as the police station) through GSM network,
17. GSM frequency: GSM900/1800MHZ, GSM850/1900MHZ
18. Waterproof, Fireproof & Antiseptic case.
19.OEM
20. The specification of main unit:
Electric power network: connect mode: Y
Phase-Neutral rated work voltage: AC220V
Phase-Neutral lowest work voltage: AC110V
Phase-Neutral highest work voltage: AC270V
Standby battery: DC12V/1.2AH(Lead Acid battery),or DC12V/1AH(Ni-MH battery)
Anti- electromagnetic interference: IEC55022
Insulation level: grade B
Protection level: IP55
Biggest capacity of insurance tube: 3A
Temperature: - 10C~+55C
Humidity: ≤95% (non-condensation)
